Tri-firm Blind Rivet-Waterproof lantern rivets are heavy-duty blind fasteners with a sealed lantern expansion design for leak-free connections. Made of aluminum or stainless steel, they form a full waterproof barrier when installed, blocking rain, moisture and dust.
Our products are manufactured to international standards. The selected line material is forged with high hardness and durability. We have a mature manufacturing process ensuring the product surface remains smooth even after long-term use.

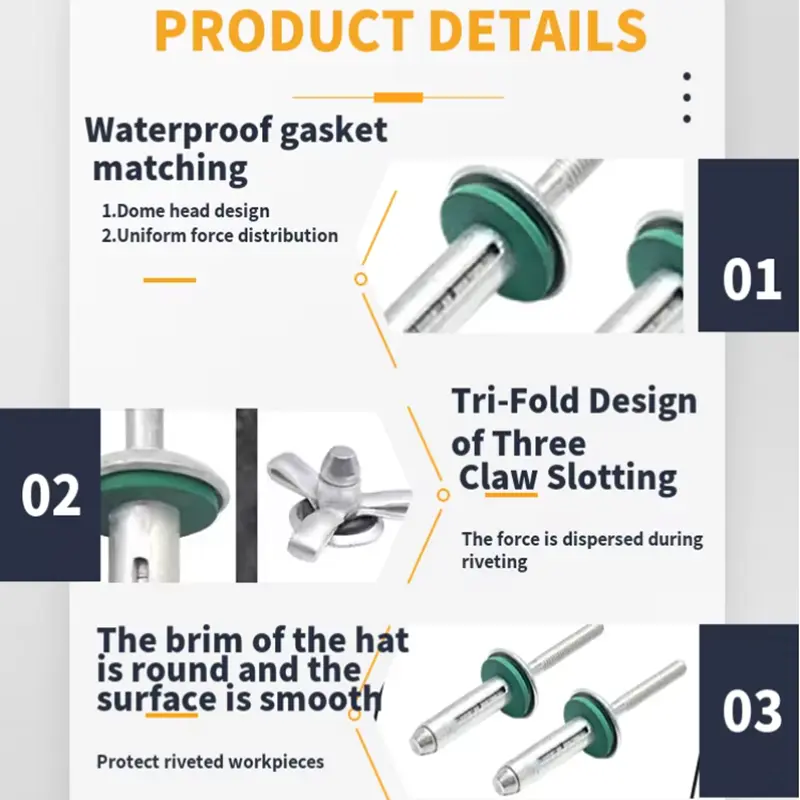

Three Split Expansion Design & Anti Pull-Through Core Advantage
Perfect Fastening Solution for Thin, Soft & Brittle Materials
Wide Grip Range
Clamping Force & Superior Vibration Resistance
Waterproof Type with Rubber Washer
Installation Guide
Generally speaking, a customized tool will be used for this rivet.
1
Drill a 7.9–8.0 mm hole and deburr it. Insert the rivet from the outer side. Keep the rubber washer flat on the panel, do not push it into the hole.
2
Fit the dedicated 7.8mm gun nose onto the mandrel. Hold the rivet gun perpendicular to the surface and press firmly against the rivet flange.
3
Pull continuously until the mandrel snaps off. Stop right away and never re-pull repeatedly.
4
Inspect: The gasket is tightly compressed. The back sleeve evenly forms three bulbing petals. Test for water leakage if required.
Application Industries
Tri-firm blind rivet is widely used in construction, automobile, ship, aircraft, machinery, electric equipment, furniture, etc., under water-proof conditions.
Construction and Metal Roofing
Ideal for color steel sheets, aluminum‑magnesium‑manganese roof panels, exterior wall cladding and rain gutters. Also popular on solar support frames. They stop rainwater seeping through fixing holes and cope with strong wind, UV rays and temperature shifts.
Outdoor Electrical Cabinets & Lighting
Great for distribution boxes, communication cabinets, LED screens and outdoor lamp housings. They keep water and dust out and prevent circuit short‑outs.

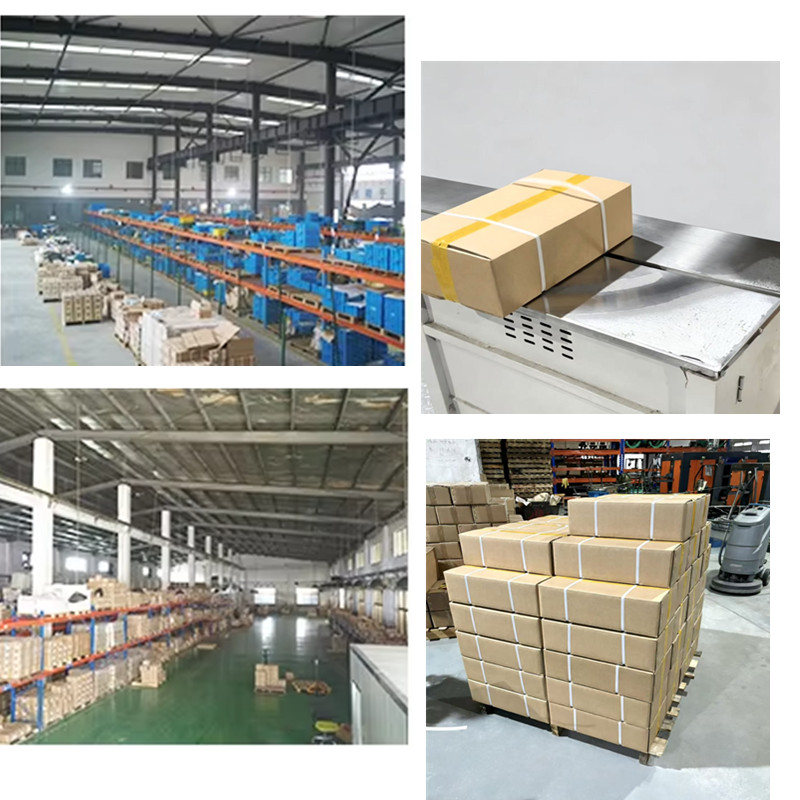

Factory Customization & Bulk Supply Service

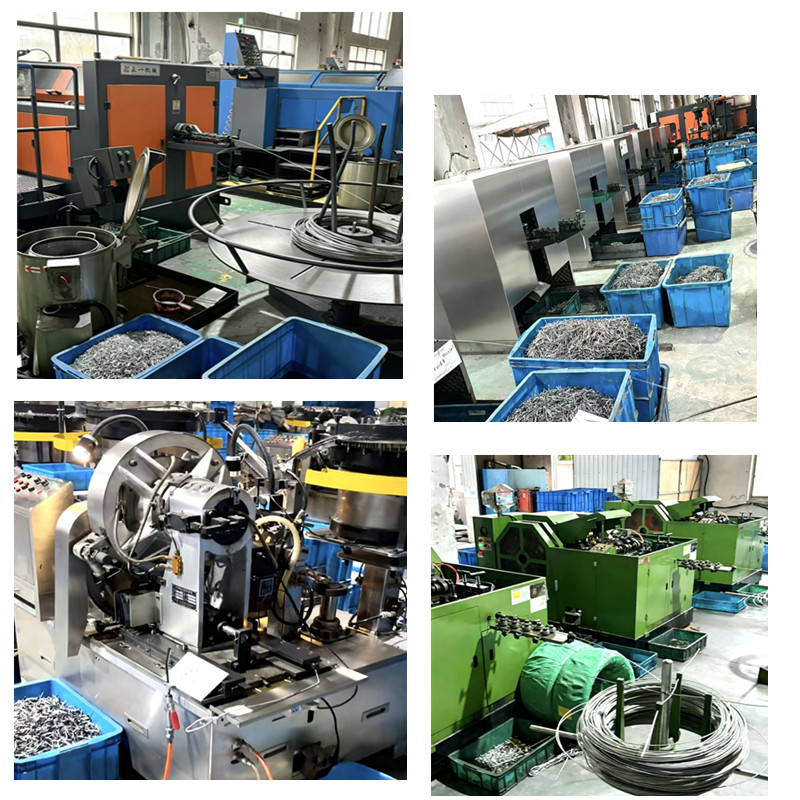

We have one complete line including cold forming machine, polish machine, treatment machine, assembling machine, testing machine, and packing machine. We provide customized size or service for your demand.
Frequently Asked Questions (FAQ)
What materials are used for Tri-Firm structural rivets?
They are manufactured with a high-hardness 5056 Aluminum body and Aluminum mandrel, offering excellent durability and a smooth polished surface finish.
Are these rivets suitable for soft or fragile materials?
Yes. The three-split expansion design provides a wide load-bearing area that prevents pull-through, making them the perfect fastening solution for thin, soft, and brittle materials.
How do Tri-Firm rivets provide waterproofing capability?
They come equipped with a dedicated rubber washer/gasket that forms a tight compression seal during installation, effectively preventing water seepage and dust intrusion.
What hole size and tool standard are required for installation?
It requires a 7.9–8.0 mm drilled hole and a dedicated 7.8mm gun nose fitted onto the mandrel to ensure proper continuous pulling until the mandrel snaps off cleanly.
Which primary industries benefit from these blind rivets?
They are extensively applied in metal roofing, construction cladding, outdoor electrical cabinets, LED lighting, solar frames, automotive, marine, aircraft, and machinery manufacturing.
Can I order customized sizes for large project demands?
Yes, full factory customization is available. Supported by our complete cold forming, treatment, testing, and packaging machinery lines, we fulfill custom dimensions and standards for bulk orders.
